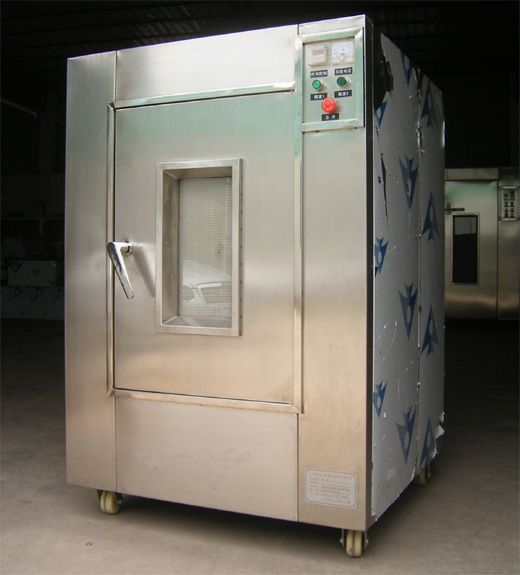

Drying

Drying Technical Parameters:

1, Model: QX-6HO

2, the input power supply: three-phase five-wire 380V ± 10% 50Hz ± 1%

3, the microwave output power: 6kW (adjustable)

4, the microwave frequency: 2450MHz ± 50Hz

5, Rated input apparent power: 9kVA

6, the microwave input current: 6A / only magnetron

7, microwave Operating Current: 0.25 ~ 0.3A / only magnetron

8 Dimensions (L × W × H): 1300mm × 950mm × 1550mm

9, wheel diameter: 650mm single turntable

10, the working environment: 0 ~ 40 ℃, relative humidity ≤ 80%

11, in line with GB 10436-1989 Hygienic standard workplace microwave radiation

12, in line with GB/5226.1-2002 Safety of machinery - Electrical equipment

Oven according to the user's actual production to design and manufacture products and different specifications of the microwave oven and hot air circulation oven. I have a microwave oven test prototype, and hot air circulation drying oven. Free on-site production operations, combined with consumer products provide one-stop technical services, welcomed the new and old friends to visit and negotiate.
