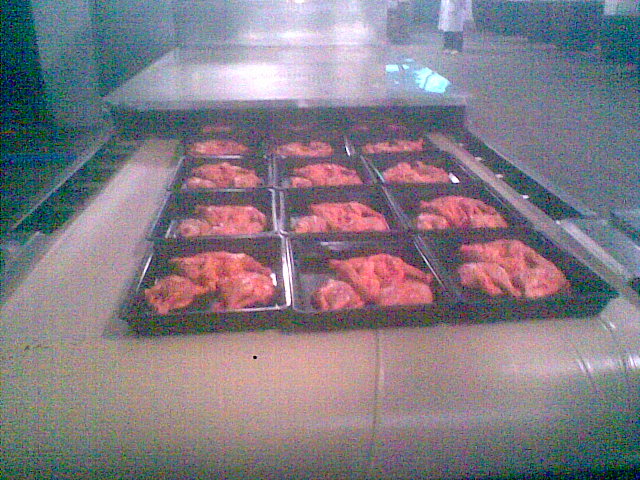

Duck microwave baking machine

Duck microwave baking machine technical parameters:

1, Product Model: QX-100HM10

2, the input power supply: three-phase five-wire 380V ± 10% 50Hz ± 1%

3, the microwave output power: 100kW (adjustable)

4, Microwave frequency: 2450MHz ± 50Hz

5, rated input apparent power: ≤ 160kVA

6, expected out Height: 100mm

7, the transmission width: 1216mm

8, the transmission speed: 0.1 ~ 5m/min

9, Dimensions (L × W × H): about 18330 × 2175 × 1518mm

10, the working environment: 0 to 40 ℃, relative humidity ≤ 80%

11, duck microwave baking machine production: Hourly drying dehydration 100kg

12, in line with GB 10436-1989 for microwave radiation hygiene standards

13, in line with GB/5226.1-2002 Safety of machinery electrical equipment

Above parameters only for reference, duck microwave baking machine the microwave baking equipment of different specifications can be designed and manufactured according to the user's actual production, I test prototype microwave equipment, provide free on-site production operations, combined with user product provides astop service, welcome old and new friends to visit and negotiate.
