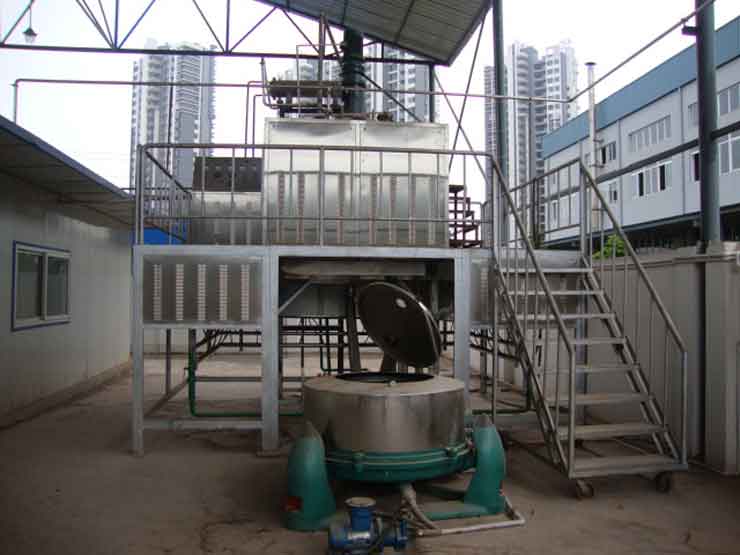

Microwave extraction machine

Equipment main parameters:



Microwave extraction machine

Microwave extraction machine technical parameters:

1, Product Model: QX-45HME

2, the input power supply: three-phase five-wire 380V ± 10% 50Hz ± 1%

3, the microwave output power: 45kW (adjustable)

4, Microwave frequency: 2450MHz ± 50Hz

5, rated input apparent power: ≤ 75kVA

6, the feed inlet diameter: 200mm

7, the discharge port diameter: 100mm

8, stirring speed: 20/75 revolutions / minute

9, Dimensions (L × W × H): about 4500 × 3500 × 4900mm

10, the extraction tank container size: Φ1130 × 1500 (1500L)

11, the working environment: 0 to 40 ℃, relative humidity ≤ 80%

12, in line with GB 10436-1989 for microwave radiation hygiene standards

13, in line with GB/5226.1-2002 Safety of machinery electrical equipment

Description of products:

The above parameters for reference only, microwave extraction machine microwave extraction equipment of different specifications can be designed and manufactured according to the user's actual production, I test prototype microwave equipment to provide free on-site production operations and provide a one-stop technology combined with user productsservice, welcome old and new friends to visit and negotiate.
